Hey XamFam!

Today we'll show how to add a few simple UI Tests to a simple Xamarin.Forms app.

Why UI Tests?

UI Tests are critical for maintaining our apps. We need to make sure we test every feature, both new and old, before publishing our apps, and the time it takes to test our apps increases exponentially as we add more features.

UI Tests help to automate our testing cycle to help shrink our development cycles and publish our apps more quickly.

Let's get started!

Hello World UI Test

Let's start with the Hello World app in Xamarin.Forms.

Step 1. Create File -> New Xamarin.Forms App

Open Visual Studio. I'll be using Visual Studio for Mac.

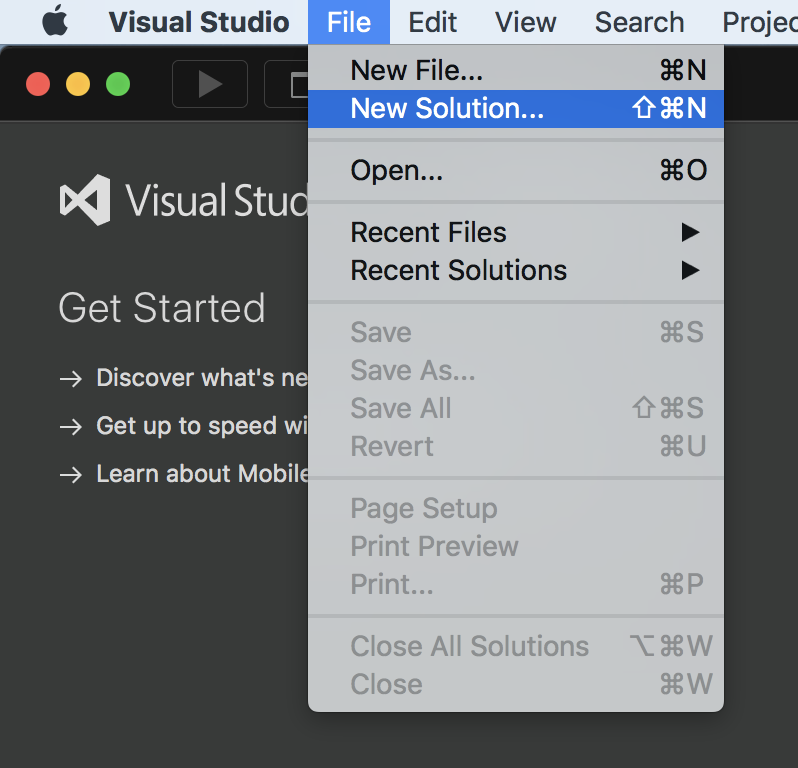

Select File -> New Solution

1_New_Solution

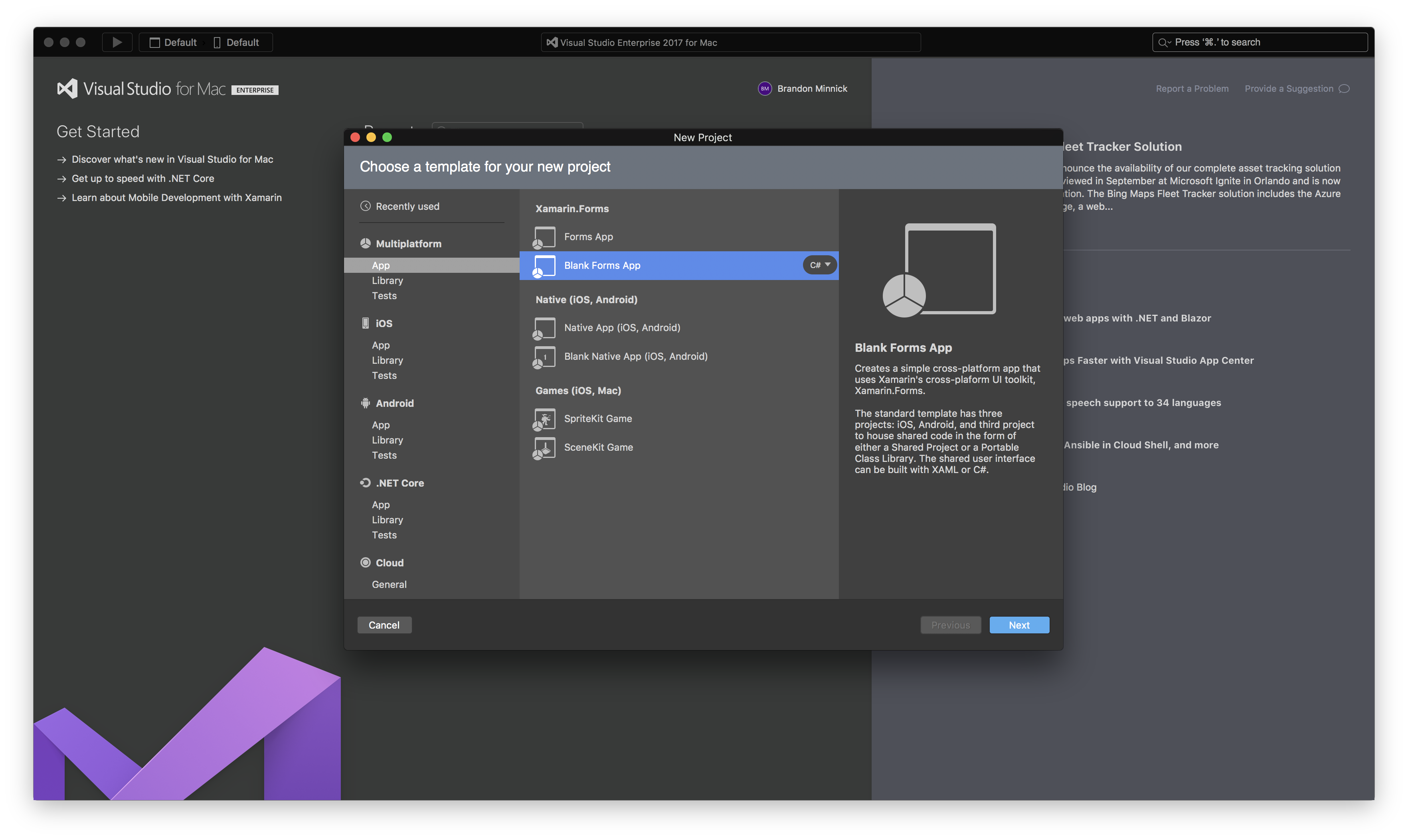

Select Multiplatform -> App -> Blank Xamarin.Forms App -> Next

2_Blank_Xamarin_Forms_App

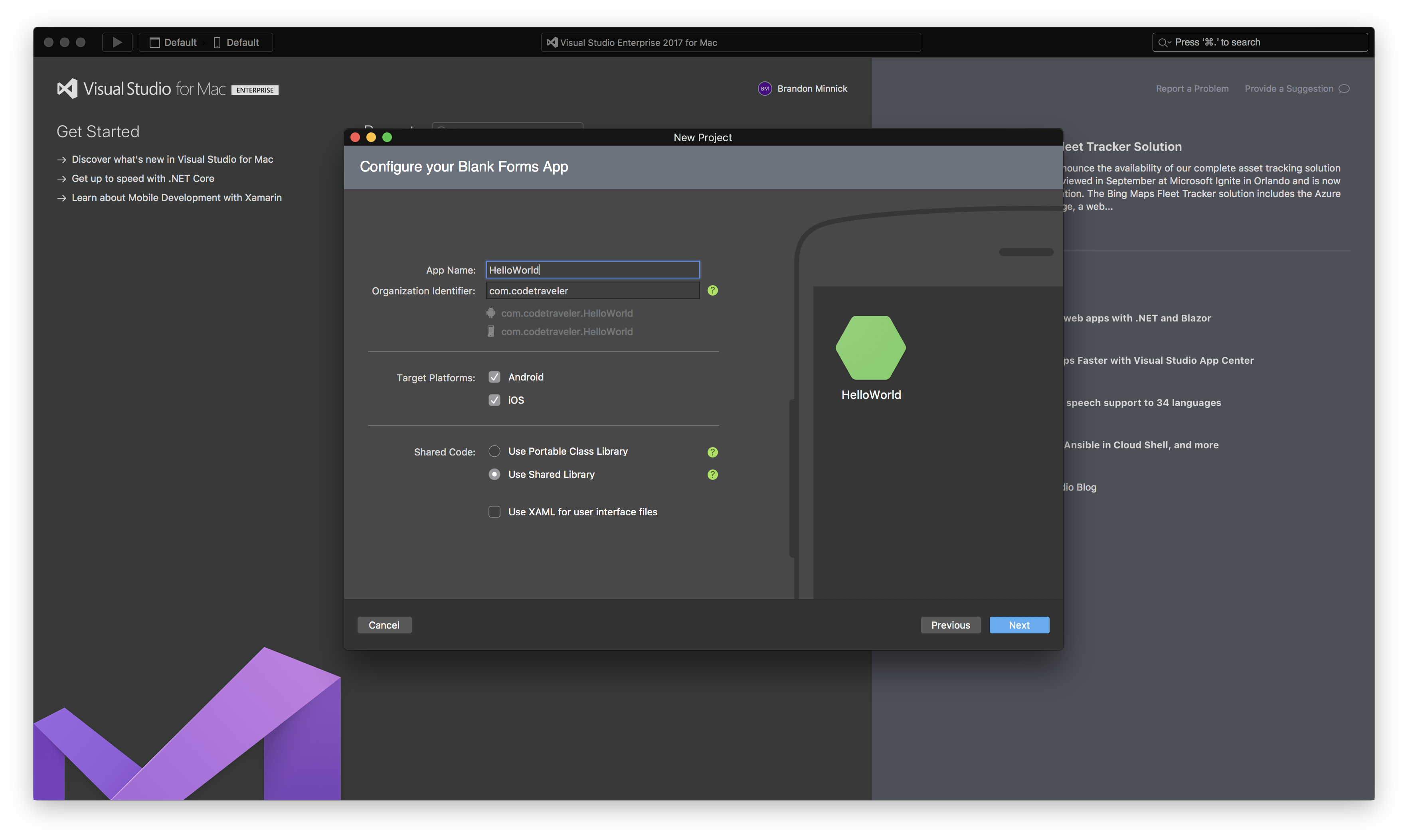

Enter the App Name, then click Next.

I'm naming mine "HelloWorld"

3_App_Name

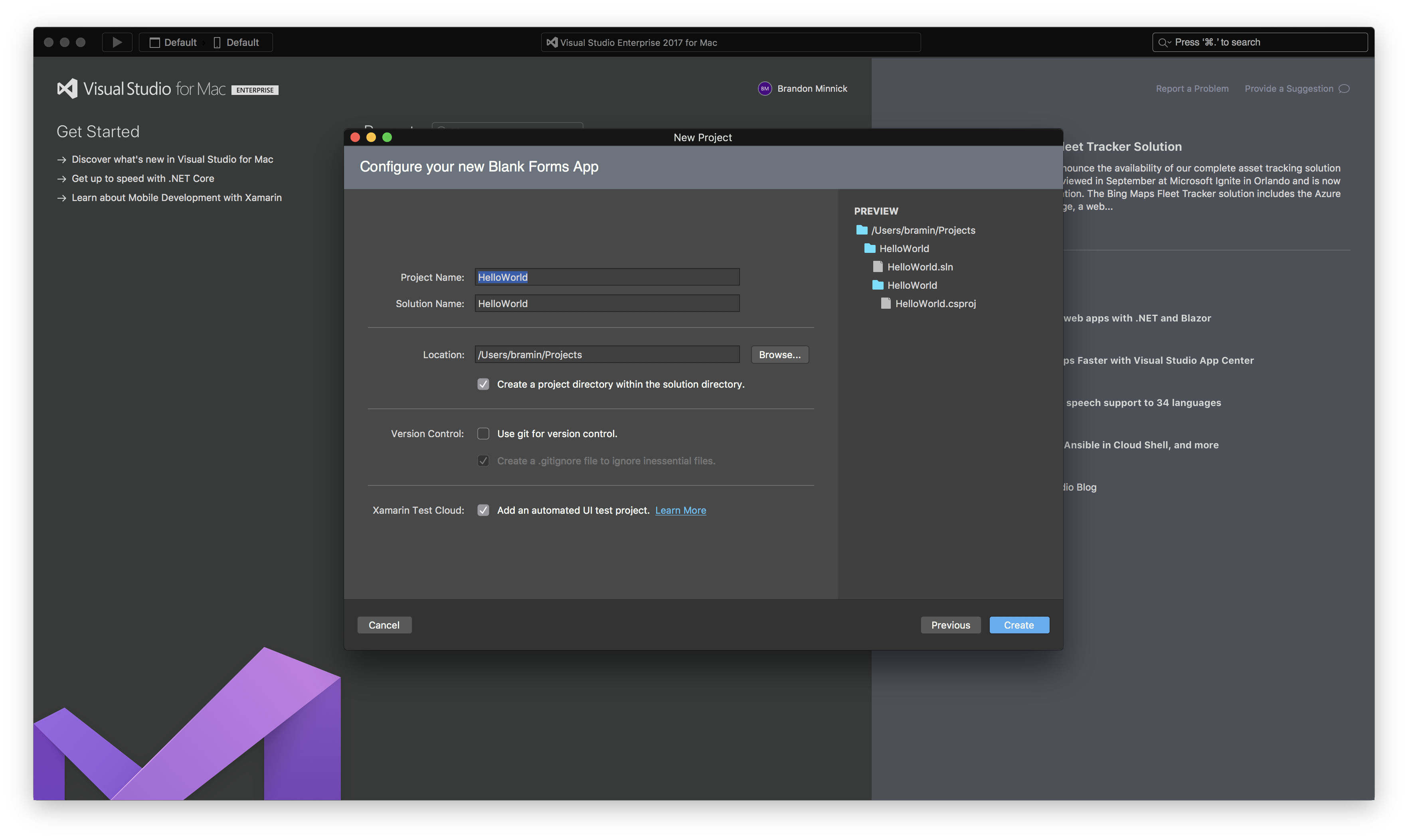

On the next screen, make sure "Add an automated UI test project" is checked, then click "Create"

4_Add_UITests

Step 2. Update Some NuGet Packages

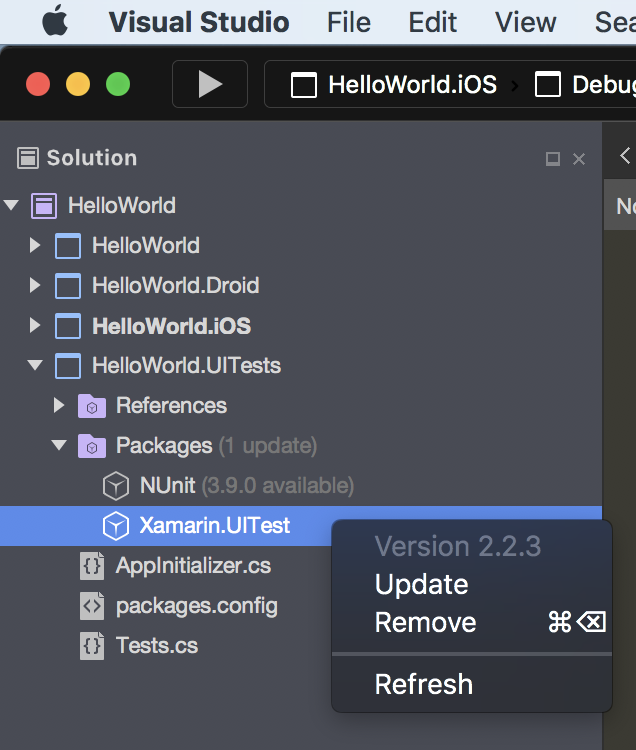

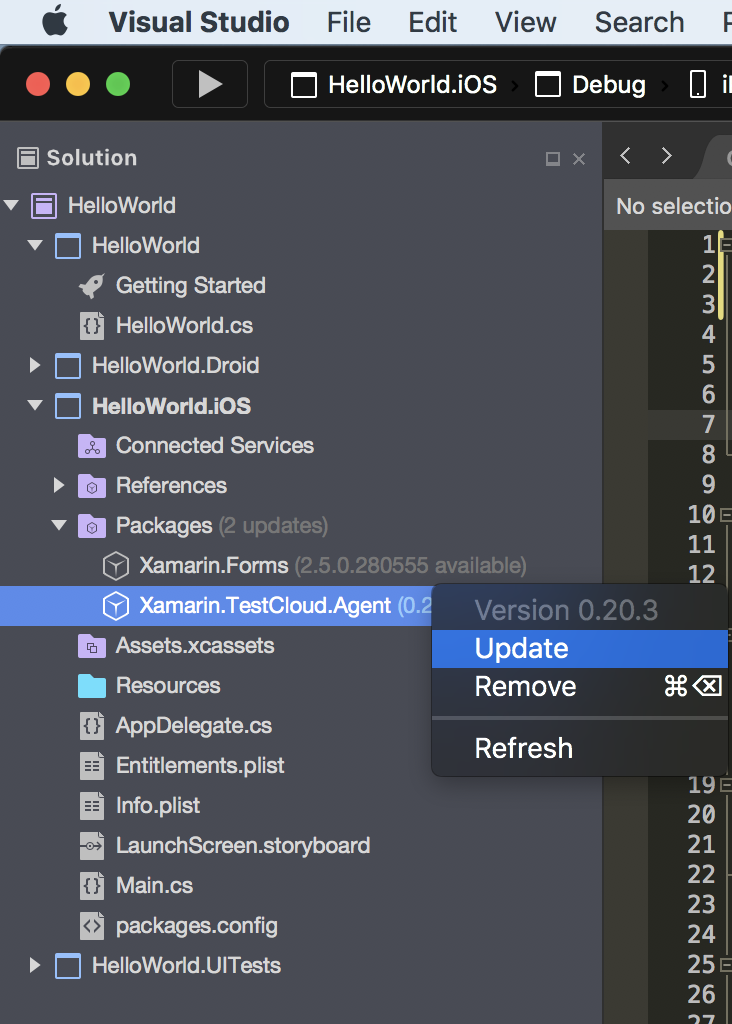

Update the Xamarin.UITest NuGet Package and the Xamarin.TestCloud.Agent NuGet Package

5_Update_iOS_Test_NuGet

5_Update_XamarinUITest_NuGet

Step 3. Disable Android Mono Shared Runtime

Xamarin.Android apps require the Mono runtime to be installed every time the our Xamarin.Android app is deployed to a device. To shorten build/deploy times, Visual Studio can install Mono onto the device once in the form of an .apk file, and allow future Xamarin.Android apps to leverage the existing Mono "app".

While this is great and can save precious seconds when building/deploying our app during development, UI Tests aren't compatible with the Shared Mono Runtime, so let's disable it!

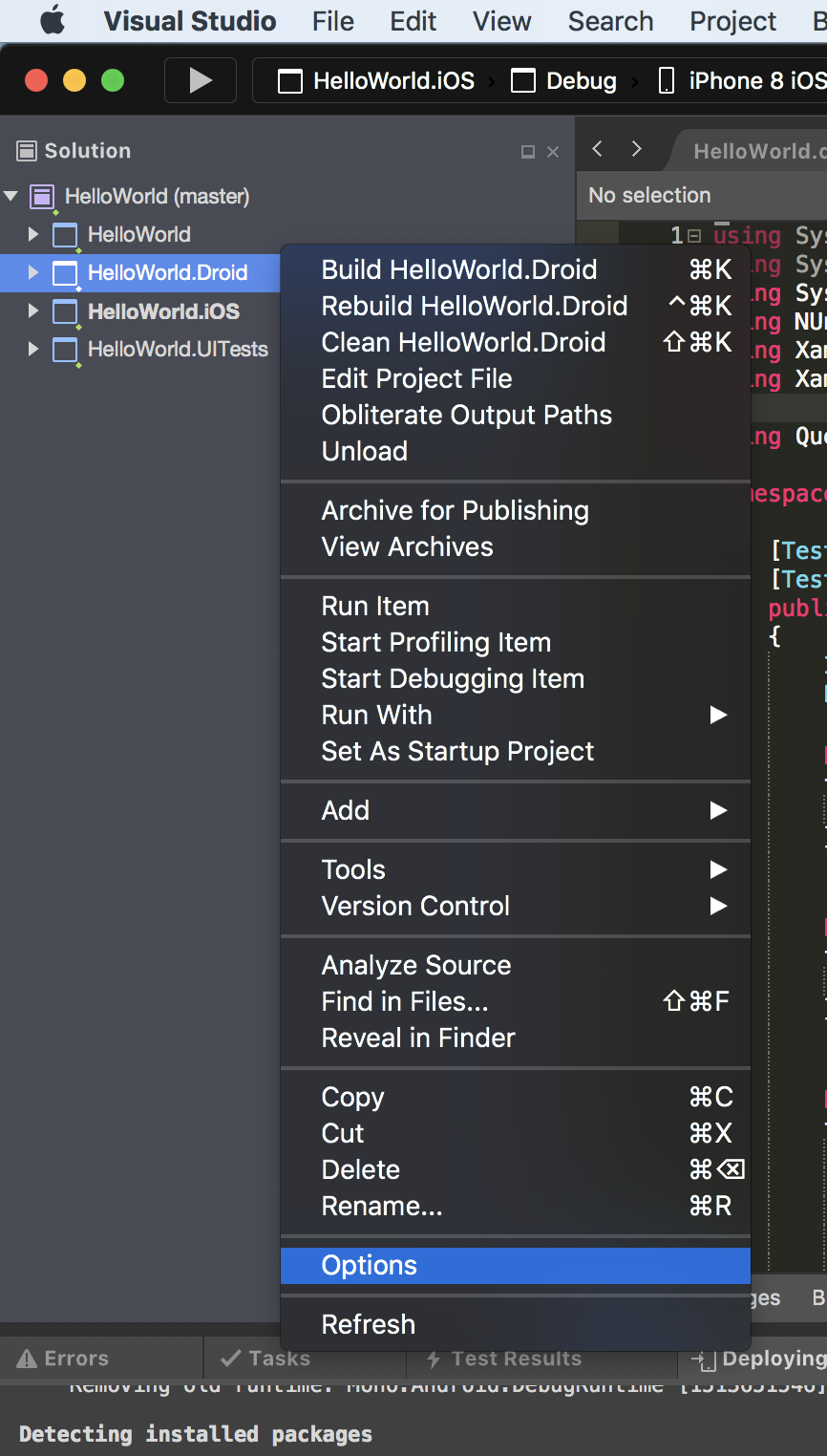

Right-click on the Android project and select Options
14_Android_Options

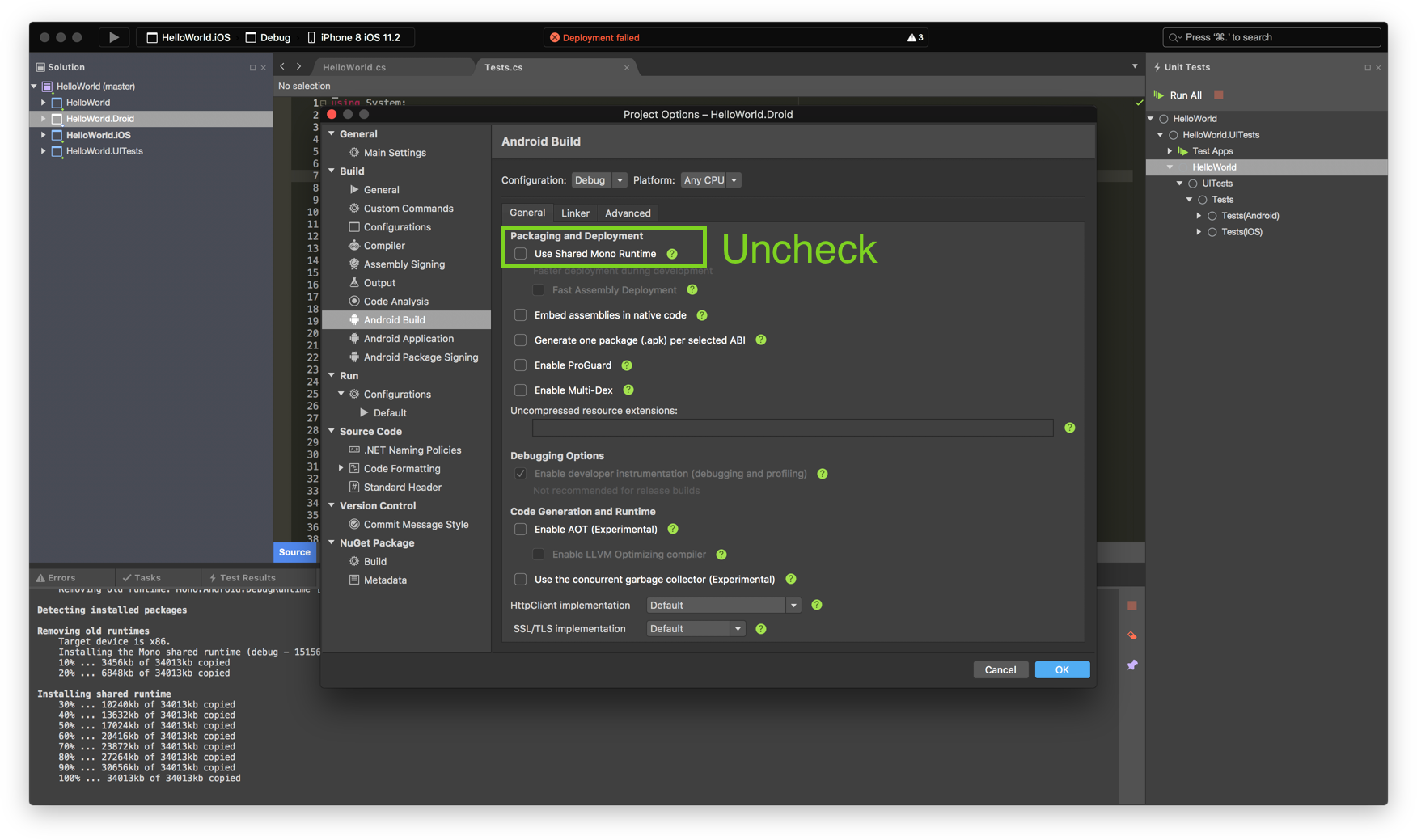

In the Project Options window, select Android Build and uncheck "Use Shared Mono Runtime"

15_Shared_Runtime

Step 4. Add Automation.ID to Xamarin.Forms UI

Every Xamarin.Forms.Element has a string property called AutomationId. This property is completely invisible to the user, and we can leverage it to uniquely identify every UI element that appears on the screen.

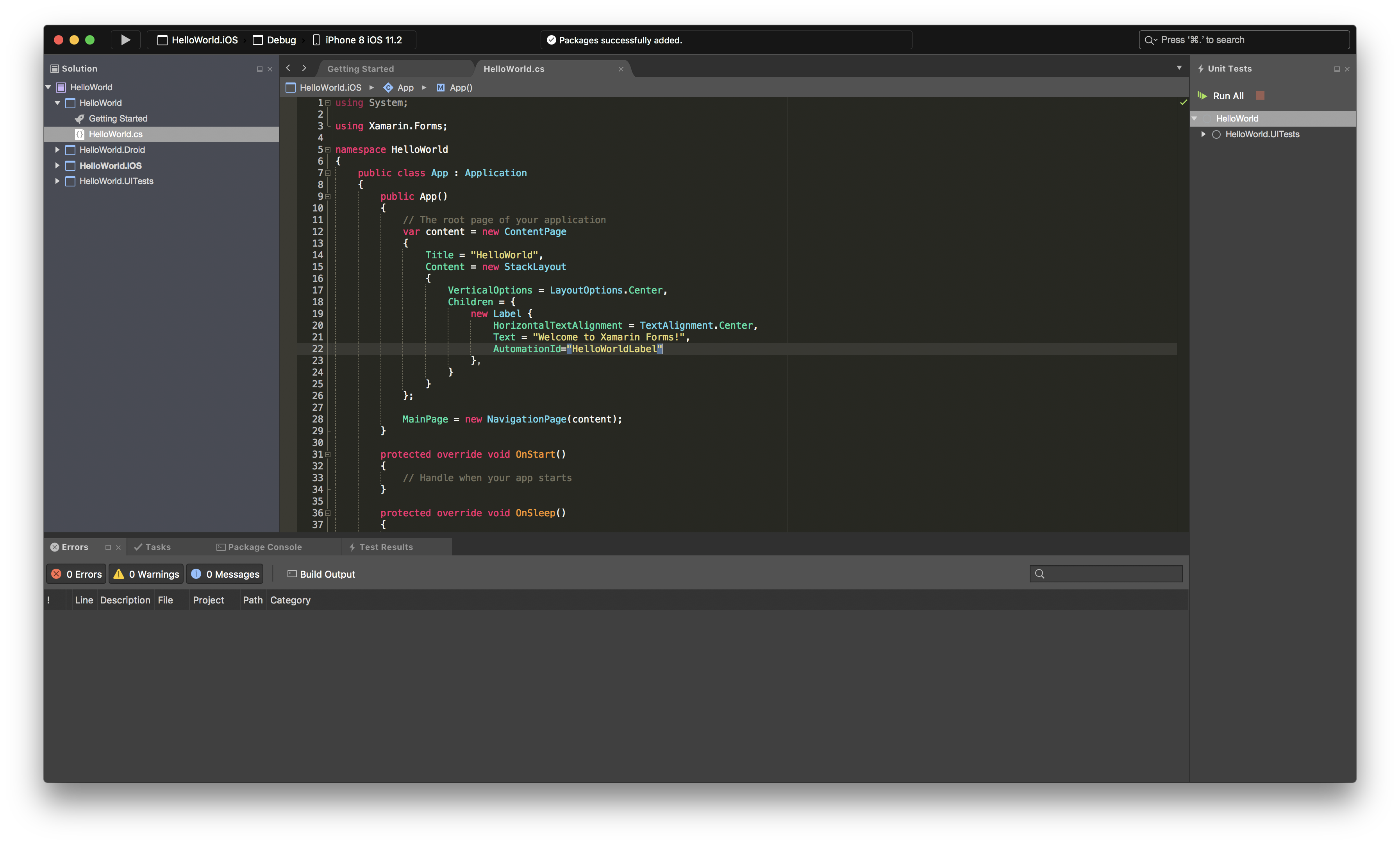

Let's assign AutomationId for the Label in our Hello World Xamarin.Forms app. I named mine "HelloWorldLabel".

public class App : Application
{
    public App()
    {
        // The root page of your application
        var content = new ContentPage
        {
            Title = "HelloWorld",
            Content = new StackLayout
            {
                VerticalOptions = LayoutOptions.Center,
                Children = {
                    new Label {
                        HorizontalTextAlignment = TextAlignment.Center,
                        Text = "Welcome to Xamarin Forms!",
                        AutomationId = "HelloWorldLabel"
                    },
                }
            }
        };

        MainPage = new NavigationPage(content);
    }
}

6_Add_AutomationId

That's it for the app!

Now let's write a UI Test!

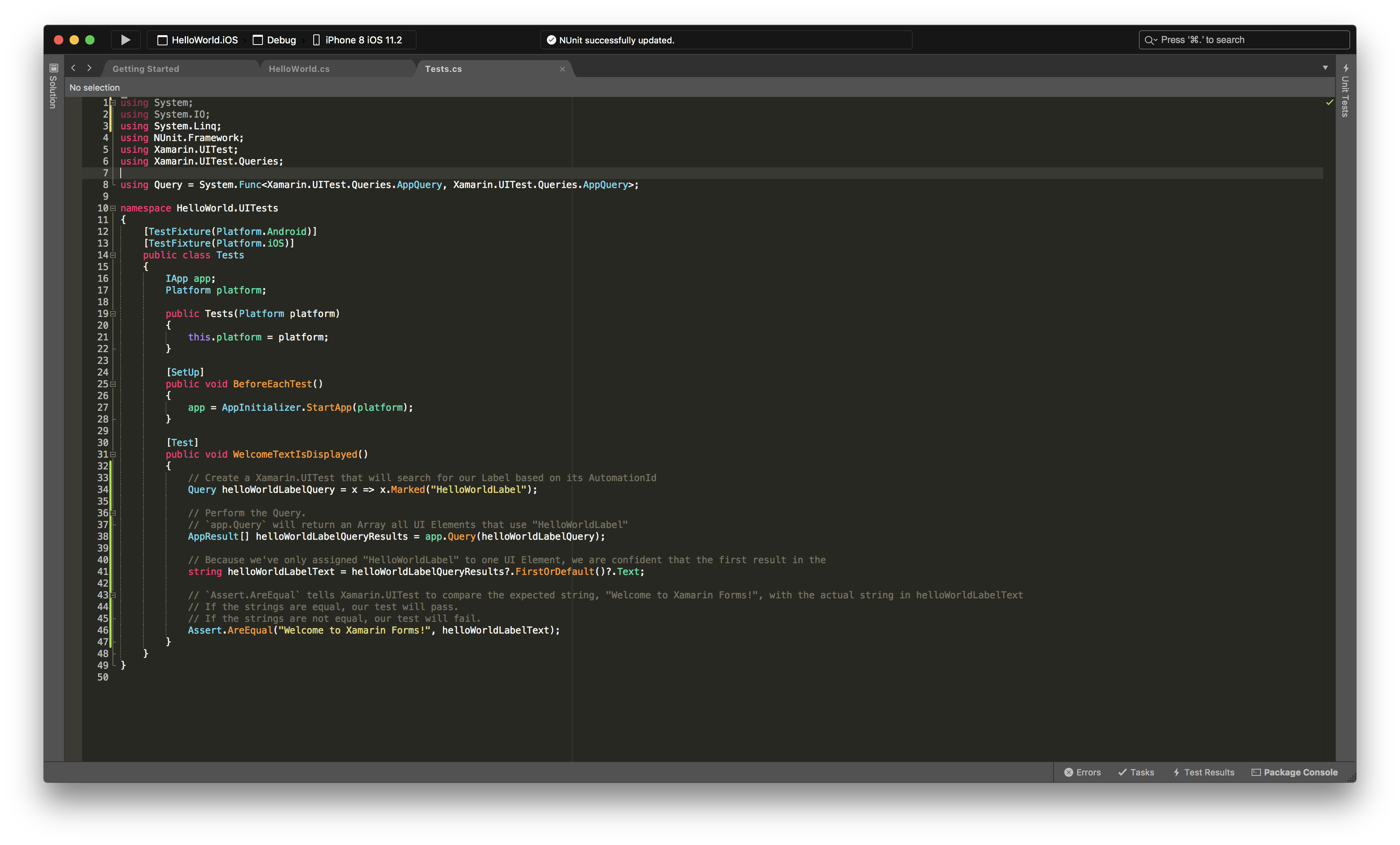

Step 5. Write UI Test

Open Tests.cs in the UITest Project.

Let's first add a Using statement to make our lives easier:

using Query = System.Func<Xamarin.UITest.Queries.AppQuery, Xamarin.UITest.Queries.AppQuery>;

Now let's edit the existing test, WelcomeTextIsDisplayed():

[Test]
public void WelcomeTextIsDisplayed()
{
    // Create a Xamarin.UITest that will search for our Label based on its AutomationId
    Query helloWorldLabelQuery = x => x.Marked("HelloWorldLabel");

    // Perform the Query.
    // `app.Query` will return an Array all UI Elements that use "HelloWorldLabel"
    AppResult[] helloWorldLabelQueryResults = app.Query(helloWorldLabelQuery);

    // Because we've only assigned "HelloWorldLabel" to one UI Element, we are confident that the first result in the
    string helloWorldLabelText = helloWorldLabelQueryResults?.FirstOrDefault()?.Text;

    // `Assert.AreEqual` tells Xamarin.UITest to compare the expected string, "Welcome to Xamarin Forms!", with the actual string in helloWorldLabelText
    // If the strings are equal, our test will pass.
    // If the strings are not equal, our test will fail.
    Assert.AreEqual("Welcome to Xamarin Forms!", helloWorldLabelText);
}

7_Write_UITest

Step 6. Build the Solution

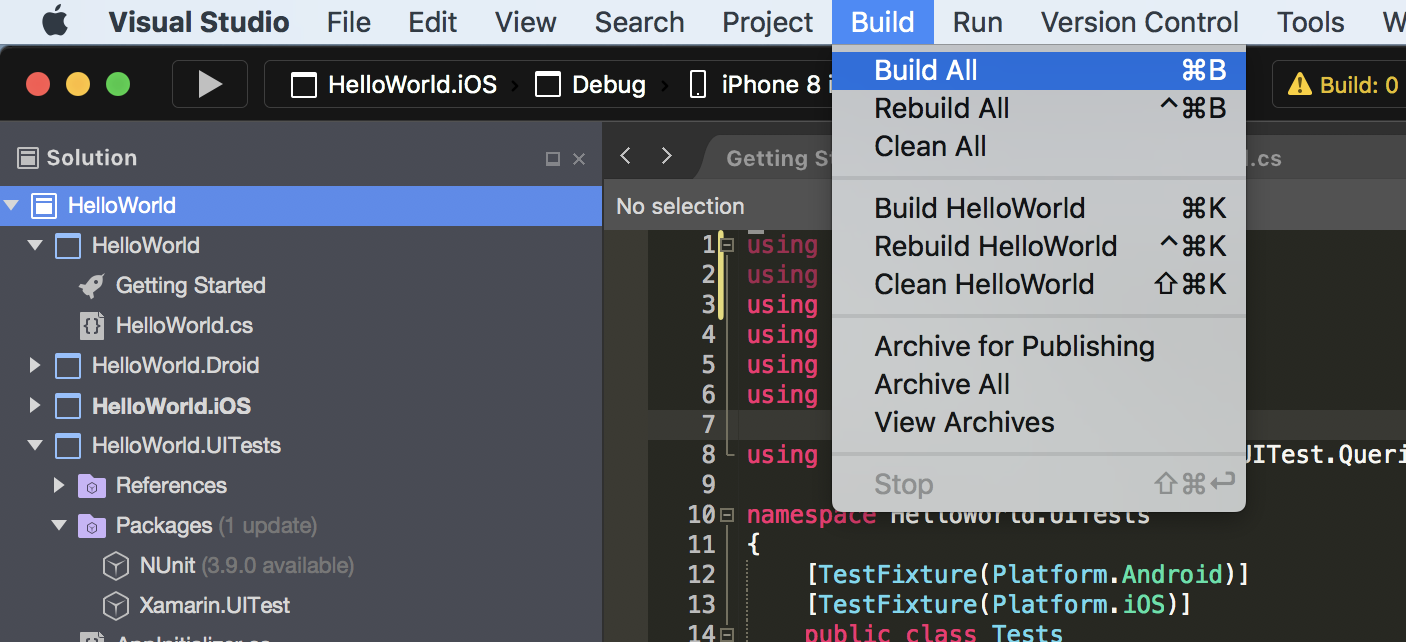

Select Build -> Build All

8_Build_Solution

Step 7. Open the Test Results Pad

9_Open_Test_Results_Pad

Step 8. Run the UI Test

Open the Unit Test Pad
(I know what you're thinking - "We're writing UI Tests! Why are we opening the Unit Tests pad?!". I don't have a good answer. For now, let's just call it an unfortunate name)

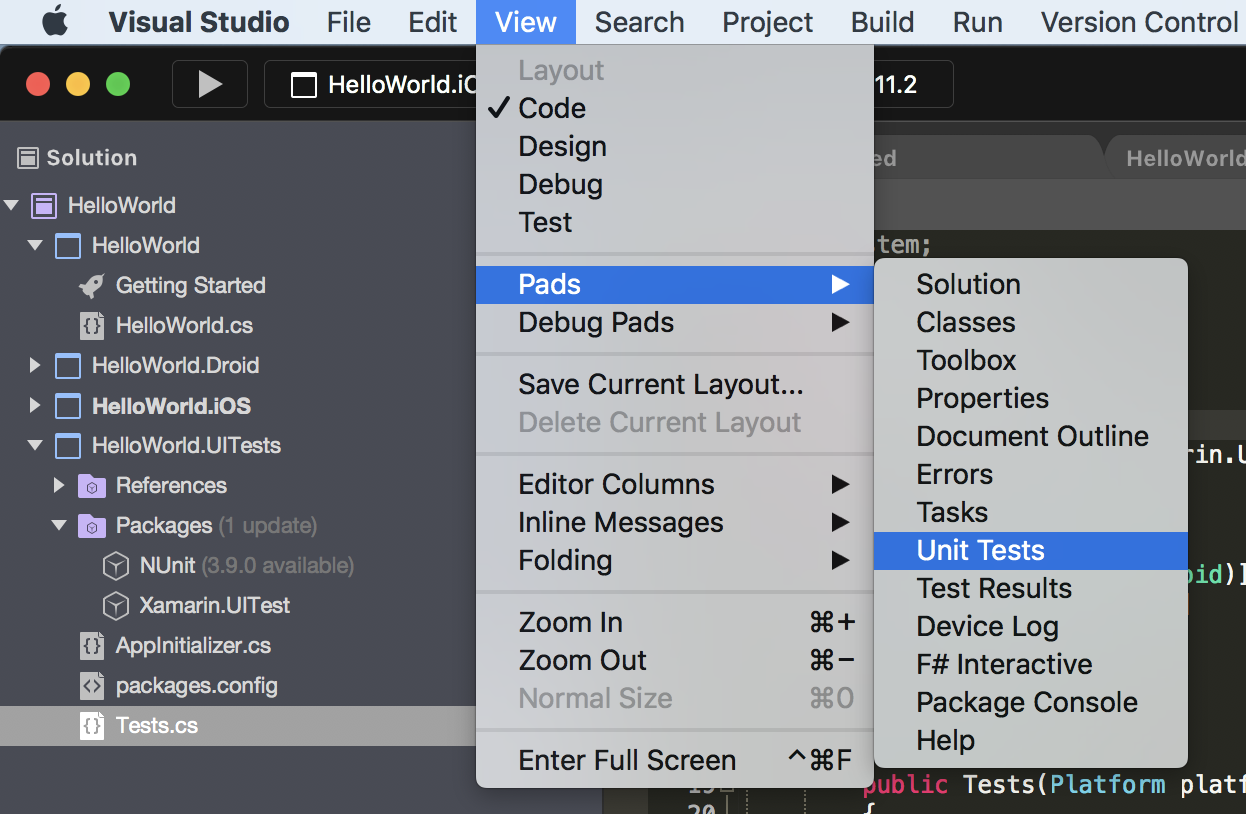

View -> Pads -> Unit Tests

10_Unit_Test_Pad

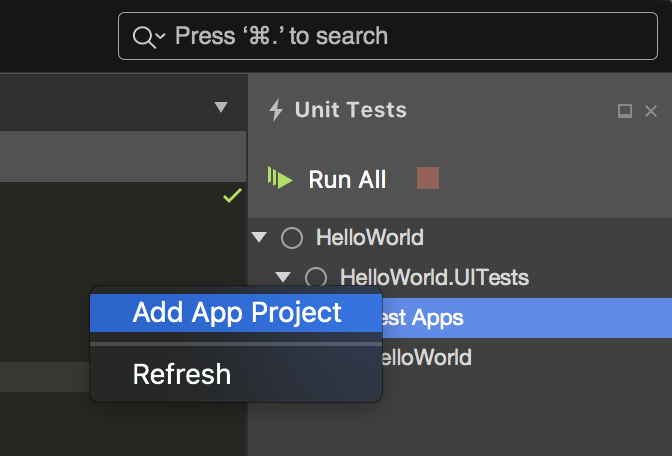

In the Unit Tests Pad (I know...the name...ugghh), right-click on Test Apps, and select Add App Project

11_Add_Test_Apps

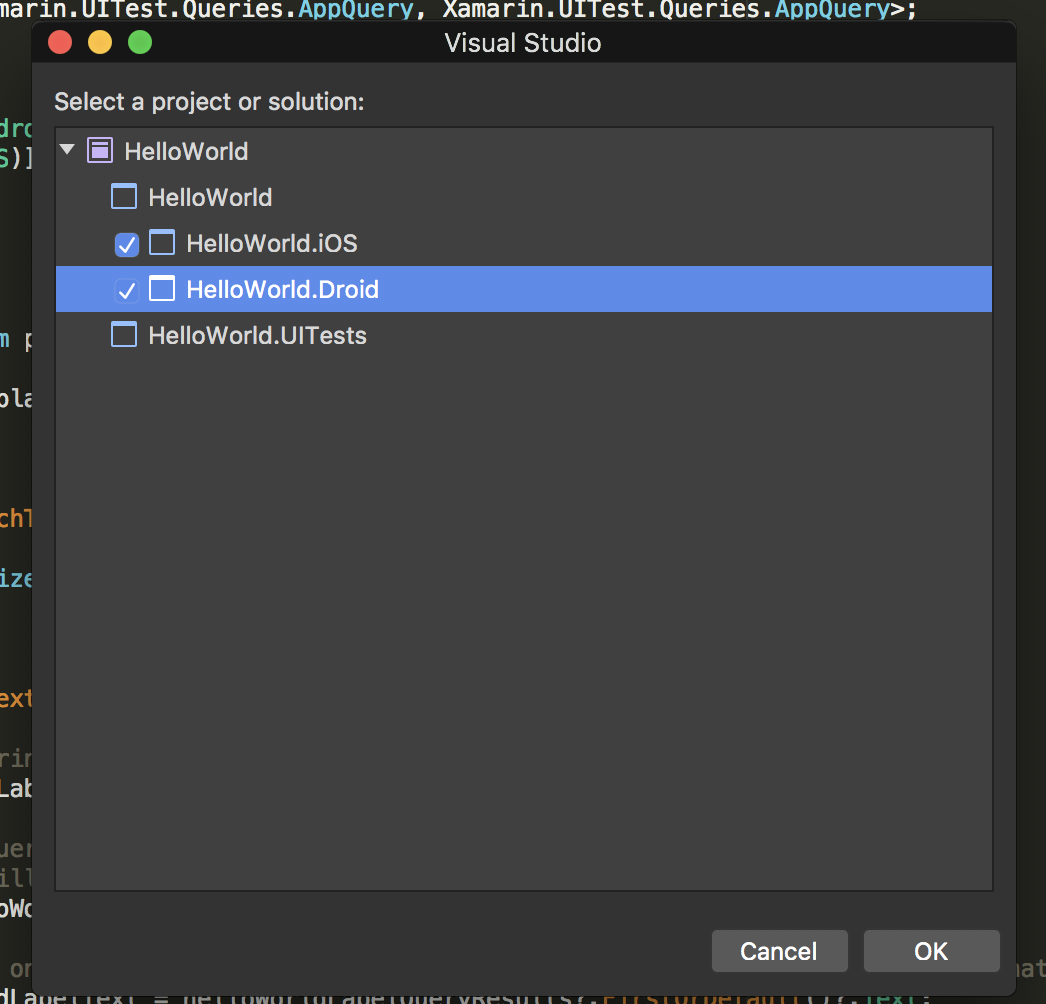

In the Add App Project window, ensure both the iOS and Android projects are selected, then click OK

12_Select_App_Projects

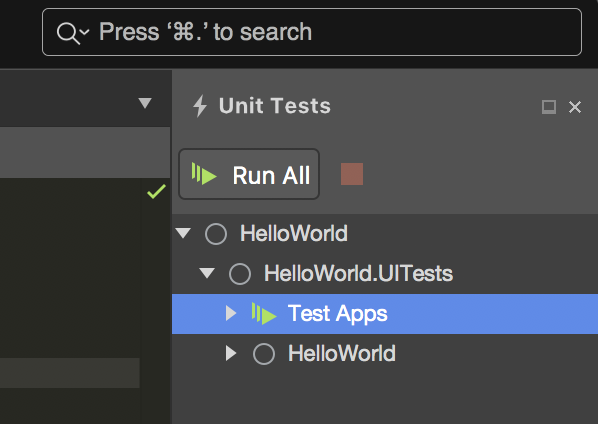

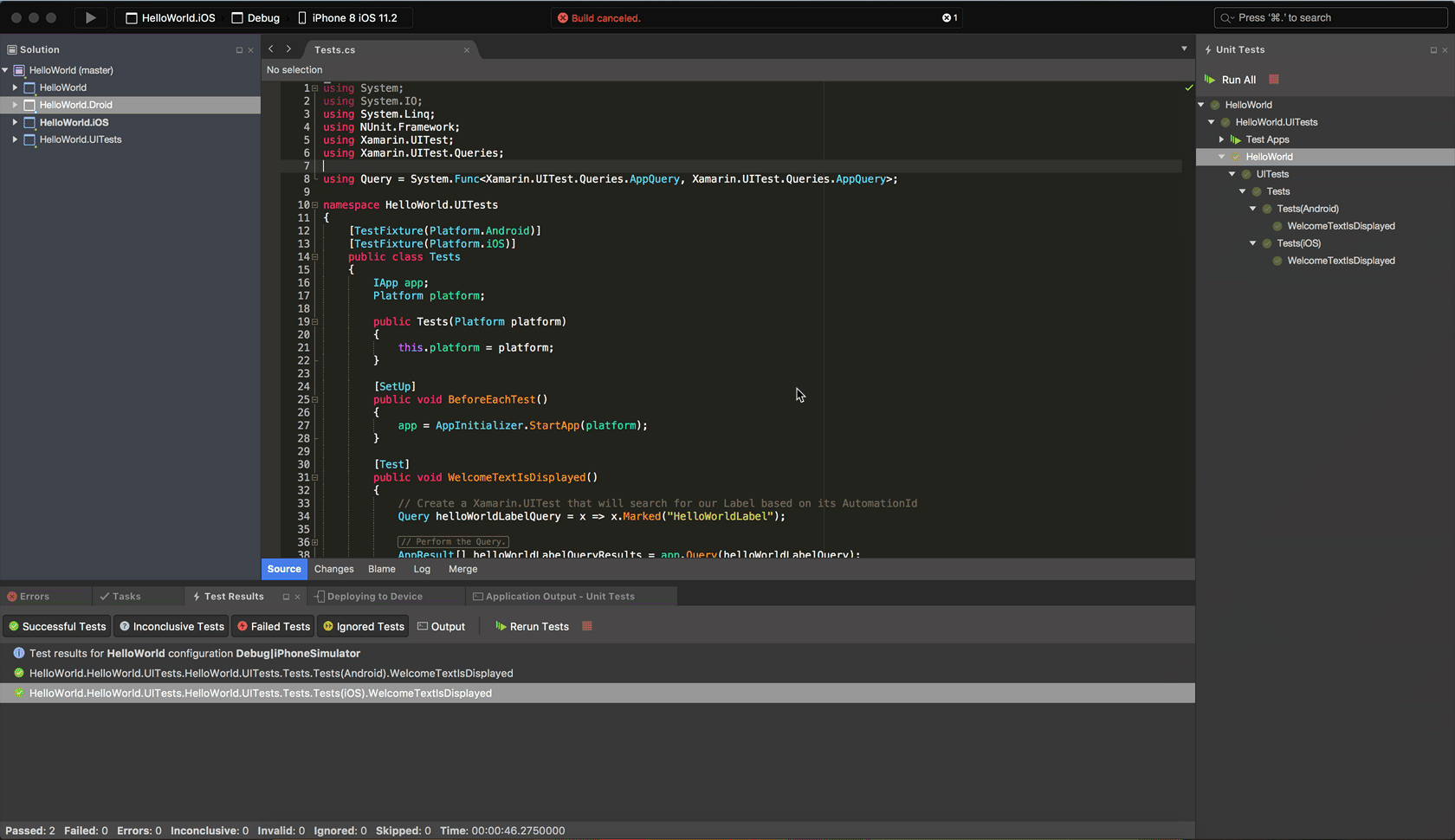

That's it! Now, click Run All!

13_Run_All

RunUITestRecording


Traveler

Where am I?

I am currently on Southwest Flight #478 from San Diego to Tampa. My wife and I are off to see a good friend is get married, and I'm more than happy to fly across the country to watch this guy marry his dream girl!

How's the Internet Speed?

⭐️️️️️️️⭐️️⭐️

Don't get me wrong, I'm not going to be streaming 4k on this airplane's internet connection, but it does everything I need for browsing the web and working on apps. In general, Southwest's WiFi is solid, and at a cost of $8, it's the best value I've found flying the friendly skies.

How's the Internet Reliability?

⭐️️️️️️️⭐️️⭐️⭐️️️️️️️⭐️️

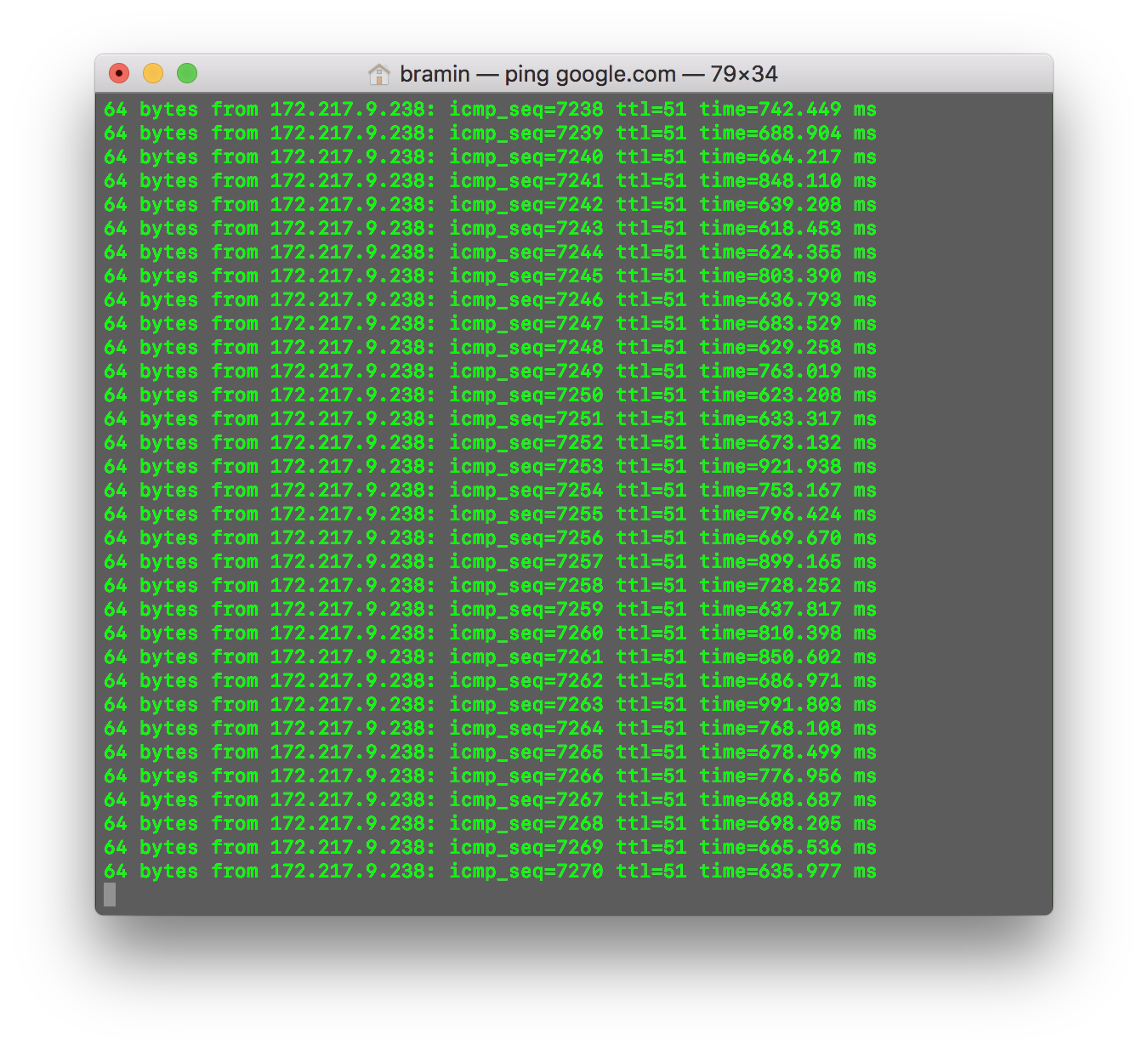

I've got to hand it to Southwest: the internet connection has been rock solid. I like to keep a constant ping running while on the plane, and it's had zero dropped packets 👊
